The 6.0L Powerstroke has developed a reputation for being one of the more problematic Powerstroke platforms—but there is much more to the story.
At Southern Truck Pros, we have extensive hands-on experience diagnosing, repairing, rebuilding, and upgrading 6.0 Powerstroke trucks. Over the years, we’ve seen these engines repaired correctly, repaired incorrectly, misdiagnosed, and sometimes have thousands of dollars in parts thrown at them without addressing the actual cause of the problem.
The 6.0 Powerstroke is a platform where proper diagnostics and proper repair procedures matter tremendously.
Yes, these engines have known weaknesses. But when those weaknesses are addressed correctly and the engine is maintained and upgraded with the right components, the 6.0 can become a reliable, powerful, and extremely fun diesel platform.
Understanding the 6.0 Powerstroke
The 6.0 Powerstroke is more complex than the earlier 7.3 and depends on several systems working together correctly.
Like the 7.3, the 6.0 uses a HEUI injection system, meaning high-pressure engine oil is used to hydraulically operate the fuel injectors.
This makes the condition and operation of the high-pressure oil system extremely important.
Components such as the High Pressure Oil Pump (HPOP), Injection Pressure Regulator (IPR), Injection Control Pressure (ICP) sensor, standpipes, dummy plugs, branch tubes, STC fitting on applicable engines, injector seals, and related components all play a role in creating and controlling the pressure necessary to operate the injectors.
At the same time, the injectors need an adequate supply of low-pressure fuel.
This is why proper testing of both high-pressure oil and fuel pressure is critical when diagnosing hard starts, hot no-starts, rough running, misfires, low power, or injector-related concerns.
The 6.0 Powerstroke VGT Turbo System
Another major feature of the 6.0 Powerstroke is its Variable Geometry Turbocharger, or VGT.
Instead of using a traditional fixed-geometry turbocharger, the VGT system can change turbine vane position to help control turbocharger response and boost.
But the turbo doesn’t operate by itself.
Proper VGT operation depends on the engine management system receiving accurate information from multiple sensors and systems, including EBP (Exhaust Back Pressure), MAP (Manifold Absolute Pressure), MAF (Mass Air Flow), engine operating conditions, commanded VGT position, and other PCM inputs.
Carbon and soot buildup, sticking turbo vanes, exhaust leaks, sensor problems, wiring issues, intake restrictions, and other concerns can all affect turbocharger operation.
This is another reason why proper diagnostics matter.
A truck that feels like it has a bad turbo doesn’t necessarily need a turbo.
Why Does the 6.0 Powerstroke Have a Bad Reputation? There’s no point pretending the 6.0 didn’t have problems.
It did.
Some of the most well-known concerns include EGR cooler failures, engine oil cooler restrictions, head gasket failures, high-pressure oil leaks, injector problems, FICM-related issues, turbocharger concerns, and cooling-system problems.
Unfortunately, incorrect diagnostics and incomplete repairs have also contributed heavily to the reputation of these engines.
Replacing a failed component without determining why it failed can result in the same problem returning.
That’s where experience with the platform becomes extremely important.

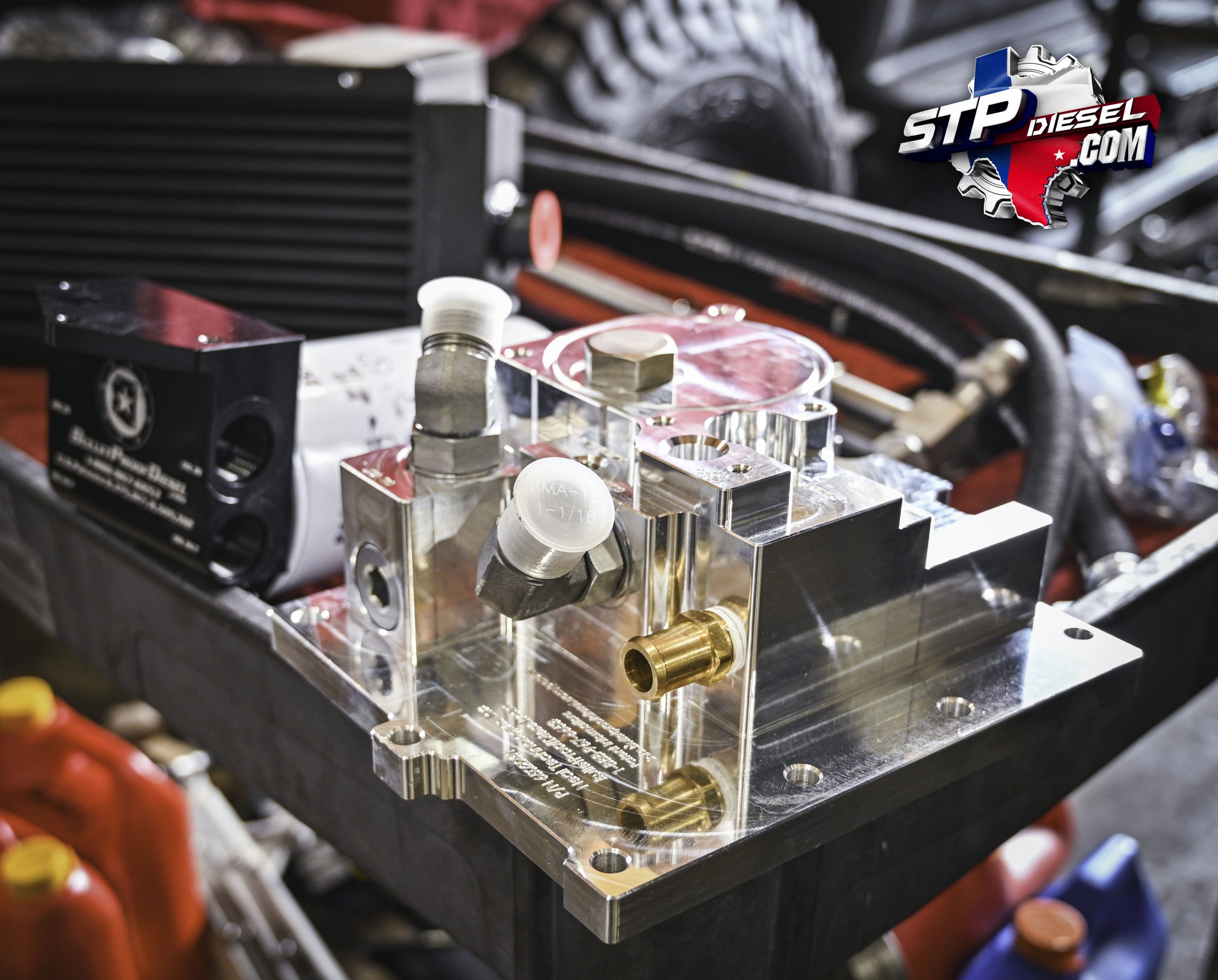

Oil Cooler & EGR System Problems
The engine oil cooler is a critical component of the 6.0 Powerstroke.
Restrictions within the oil cooler can affect coolant flow through the EGR cooler. This relationship is one of the reasons we don’t look at these systems as isolated components.
When diagnosing cooling-system, EGR, or oil cooler concerns, the entire system needs to be evaluated.
Simply replacing one failed component without addressing the underlying condition can lead to another expensive repair later.

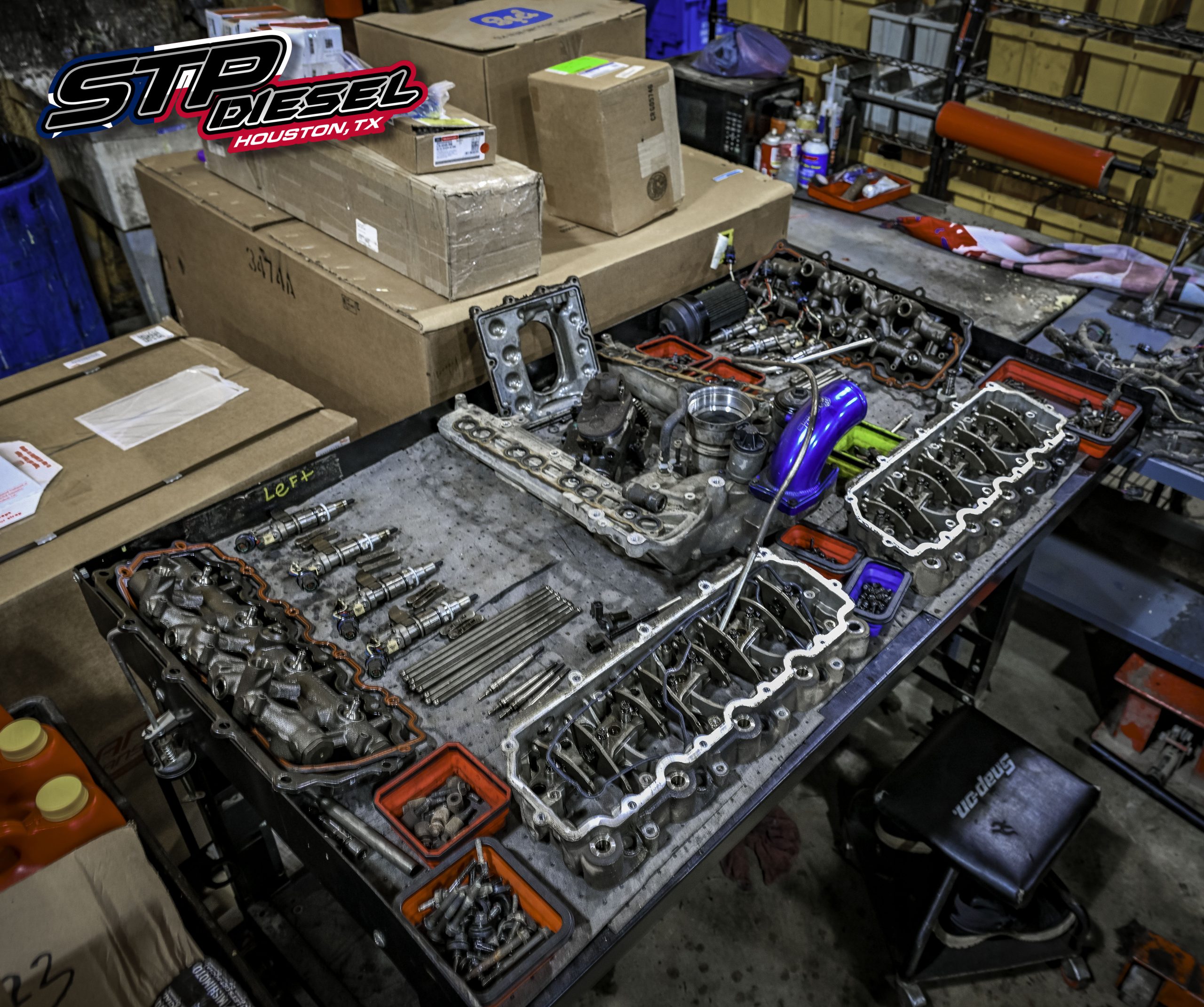

6.0 Powerstroke Head Gaskets & Head Studs
Head gasket failure is probably one of the issues most commonly associated with the 6.0 Powerstroke.
But a proper head gasket repair involves much more than simply replacing the gaskets and installing head studs.
The condition and flatness of the cylinder heads need to be evaluated, sealing surfaces need to be properly prepared, cooling-system concerns need to be addressed, and the engine needs to be assembled using the correct procedures.
Depending on the application and customer’s goals, upgraded head studs and other supporting components can significantly improve the durability of the combination.
This is one repair where doing it correctly the first time matters.
Aftermarket Support Changed the 6.0 Powerstroke One major advantage the 6.0 has today is something it didn’t have when these trucks were new: Decades of aftermarket development.
Over the years, numerous diesel-performance manufacturers have developed improved components and solutions addressing many of the weaknesses discovered in the original platform.
Today, there are upgraded solutions available for areas such as:
- Engine oil cooling
- EGR-system reliability
- Head gasket sealing and head studs
- High-pressure oil systems
- Fuel delivery
- Fuel injectors

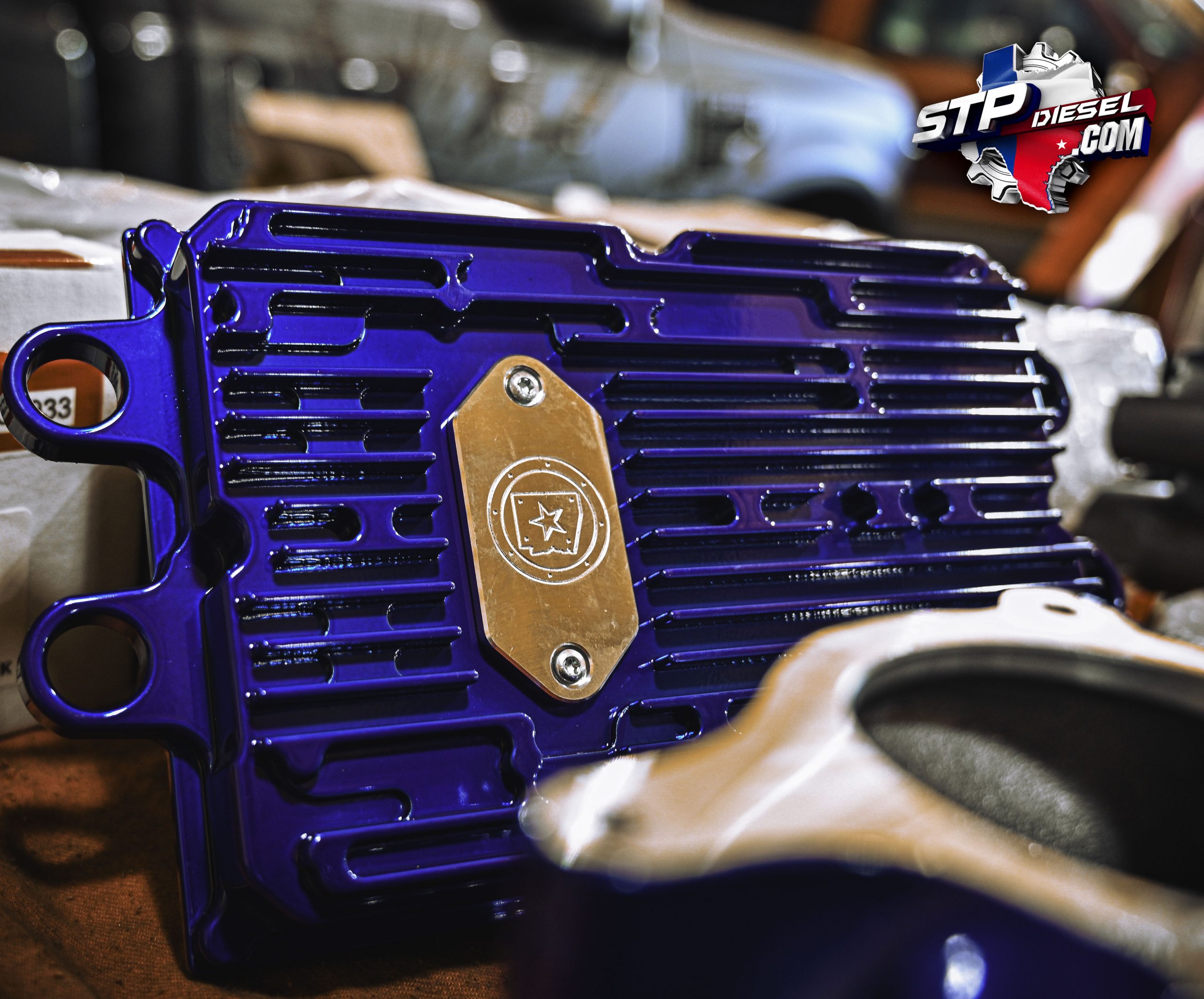

- FICM performance
- Turbochargers
- Intake and intercooler systems
- Exhaust systems
- Monitoring and instrumentation
- Transmission performance
- Internal engine components
The key isn’t simply installing aftermarket parts.
It’s knowing which products work, which upgrades your truck actually needs, and which combination is right for the intended use.

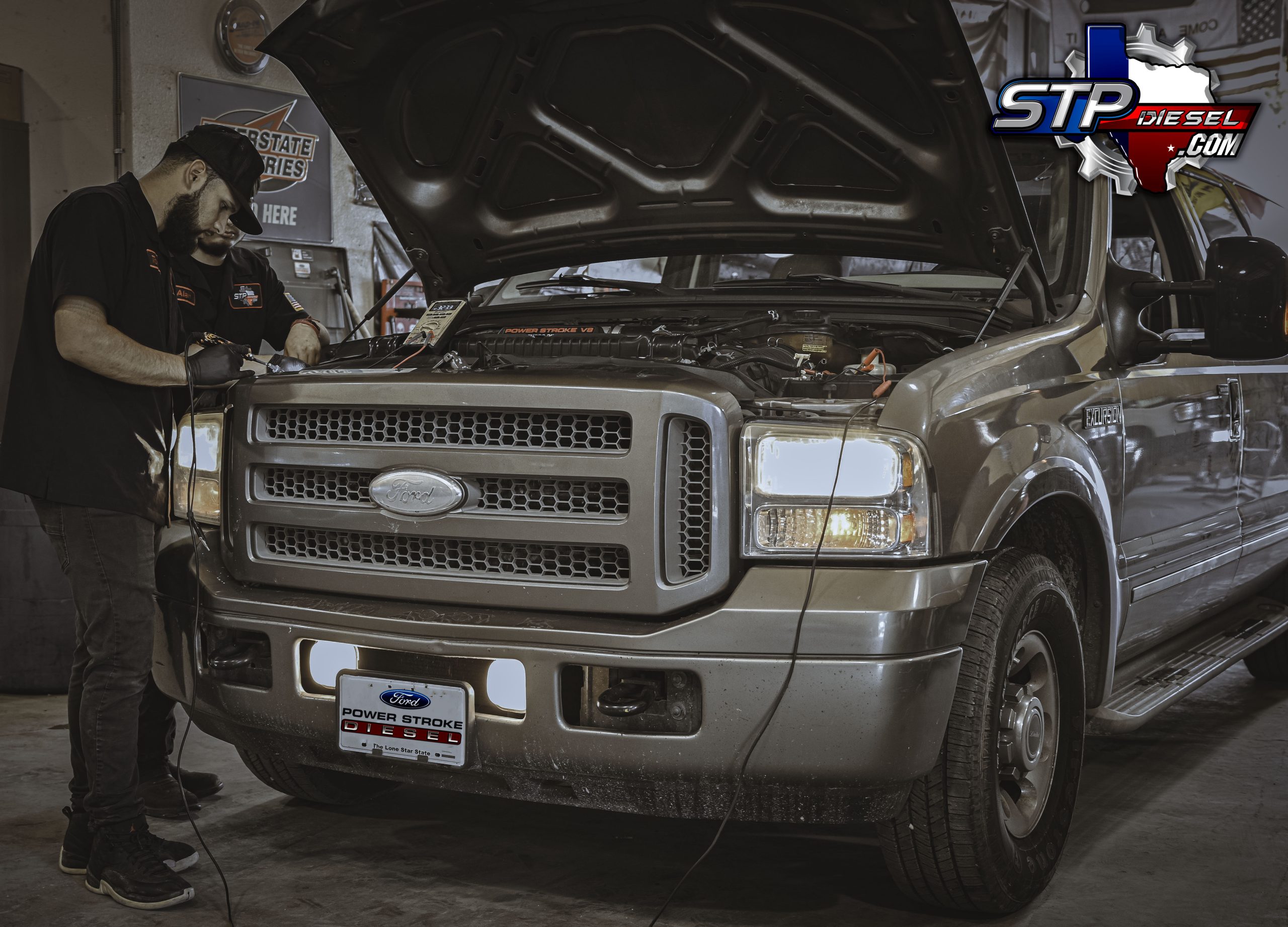

6.0 Powerstroke Diagnostics
The 6.0 Powerstroke is not a platform we recommend diagnosing by guessing. Many symptoms can have multiple possible causes.
A hard-start or no-start condition could involve the high-pressure oil system, fuel system, FICM, injectors, electrical system, sensors, base engine condition, or a combination of problems.
A low-power complaint could involve VGT operation, EBP readings, MAP or MAF data, boost leaks, exhaust leaks, fuel pressure, injectors, or other systems.
Our diagnostic process is focused on testing systems, analyzing data, and identifying the actual cause of the problem before recommending repairs.
That can include evaluating:
- ICP pressure and desired versus actual pressure
- IPR command
- High-pressure oil system integrity
- Fuel pressure
- Injector contribution
- FICM operation
- EBP, MAP and MAF data
- VGT command and turbo response
- Cooling-system operation
- Engine oil and coolant temperature data
- Electrical and sensor operation
- Base engine condition
Good diagnostics save money. Incorrect diagnostics get expensive quickly. 6.0 Powerstroke Performance Upgrades

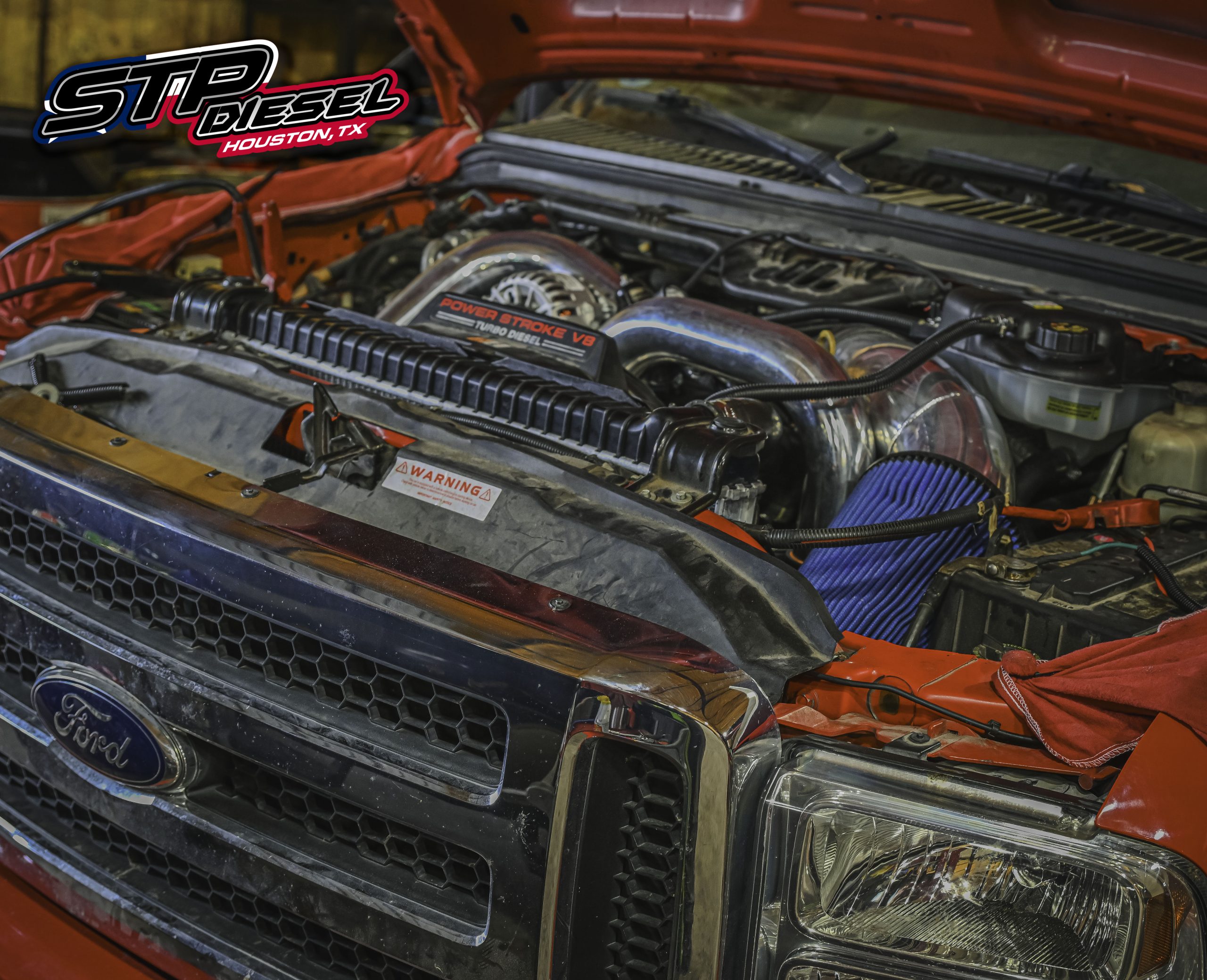

Once the foundation is healthy, the 6.0 Powerstroke can be an extremely fun platform to modify.
These engines respond well to properly matched airflow, fuel, turbocharger, tuning, and supporting upgrades.
Depending on your goals, a performance combination may include:
- Upgraded VGT turbocharger
- Performance injectors
- Upgraded HPOP
- Regulated fuel return
- Improved fuel delivery
- Intake manifold upgrades
- Intercooler and charge-air upgrades

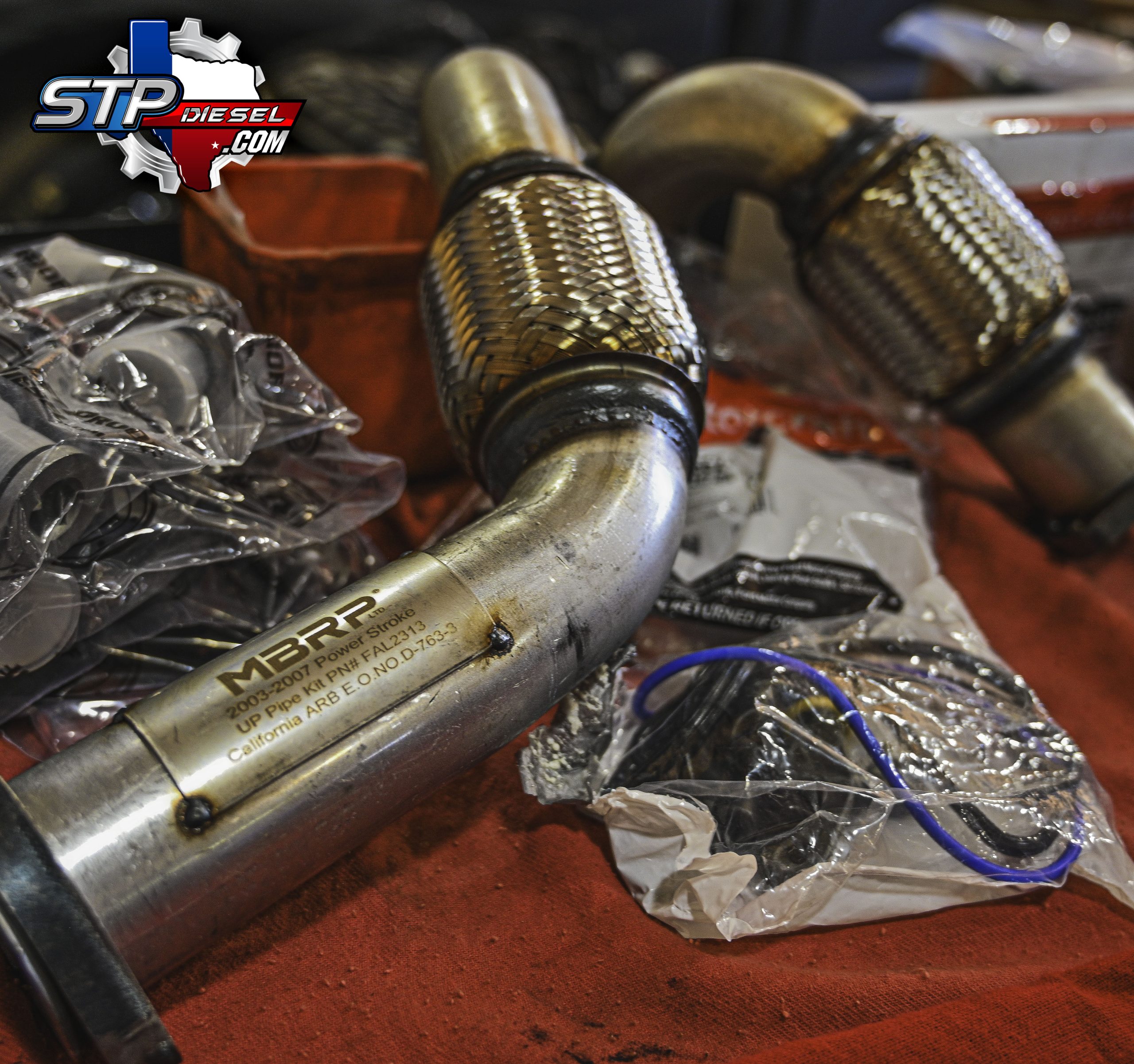

- Exhaust upgrades
- Custom tuning
- Monitoring systems
- Transmission upgrades
- Internal engine upgrades
Just like with any diesel performance build, combination is everything.
Injector size, turbocharger selection, high-pressure oil capability, fuel supply, tuning, transmission setup, and intended use all need to complement each other.

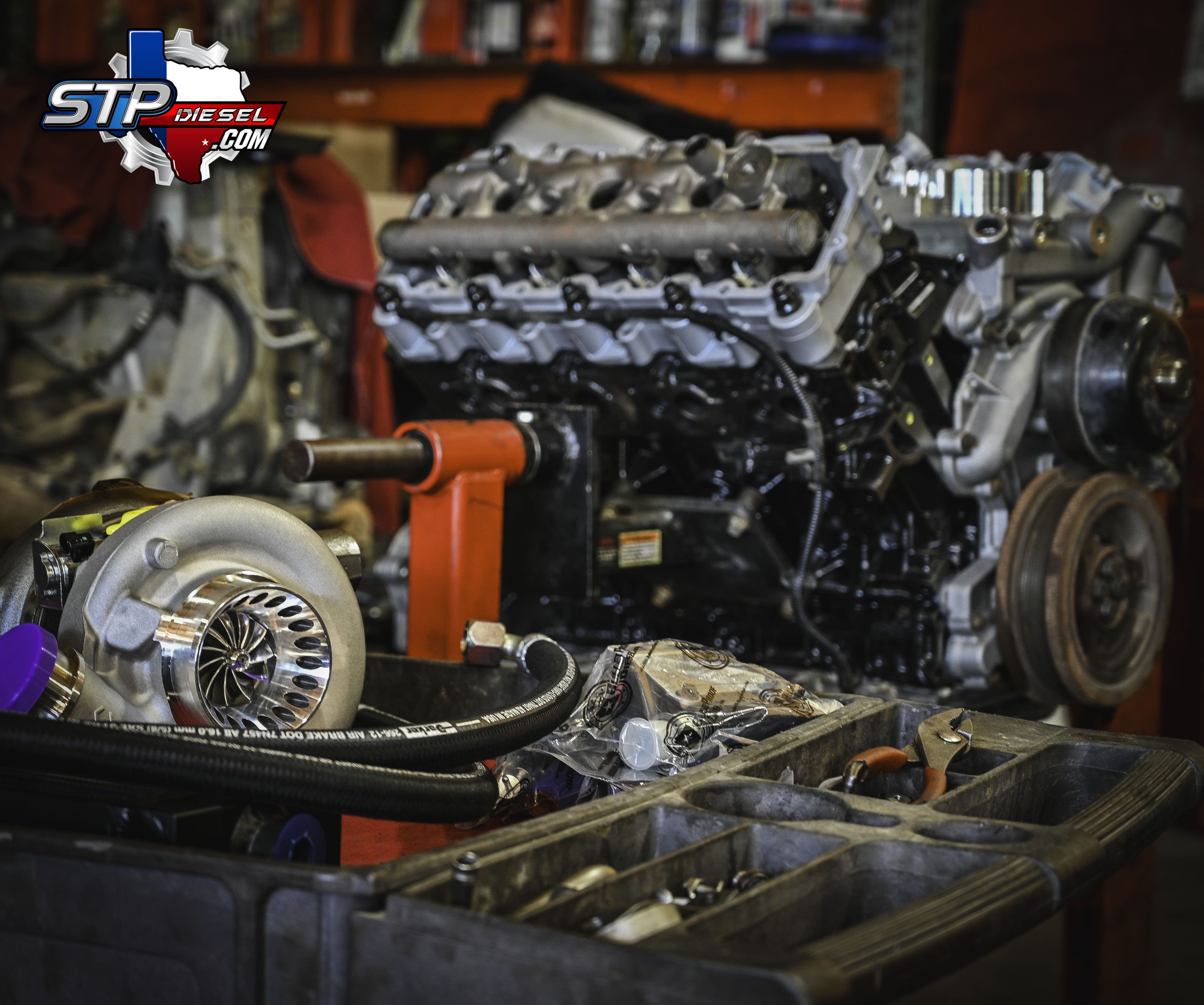

That Signature 6.0 Powerstroke Sound
And then there’s the sound.

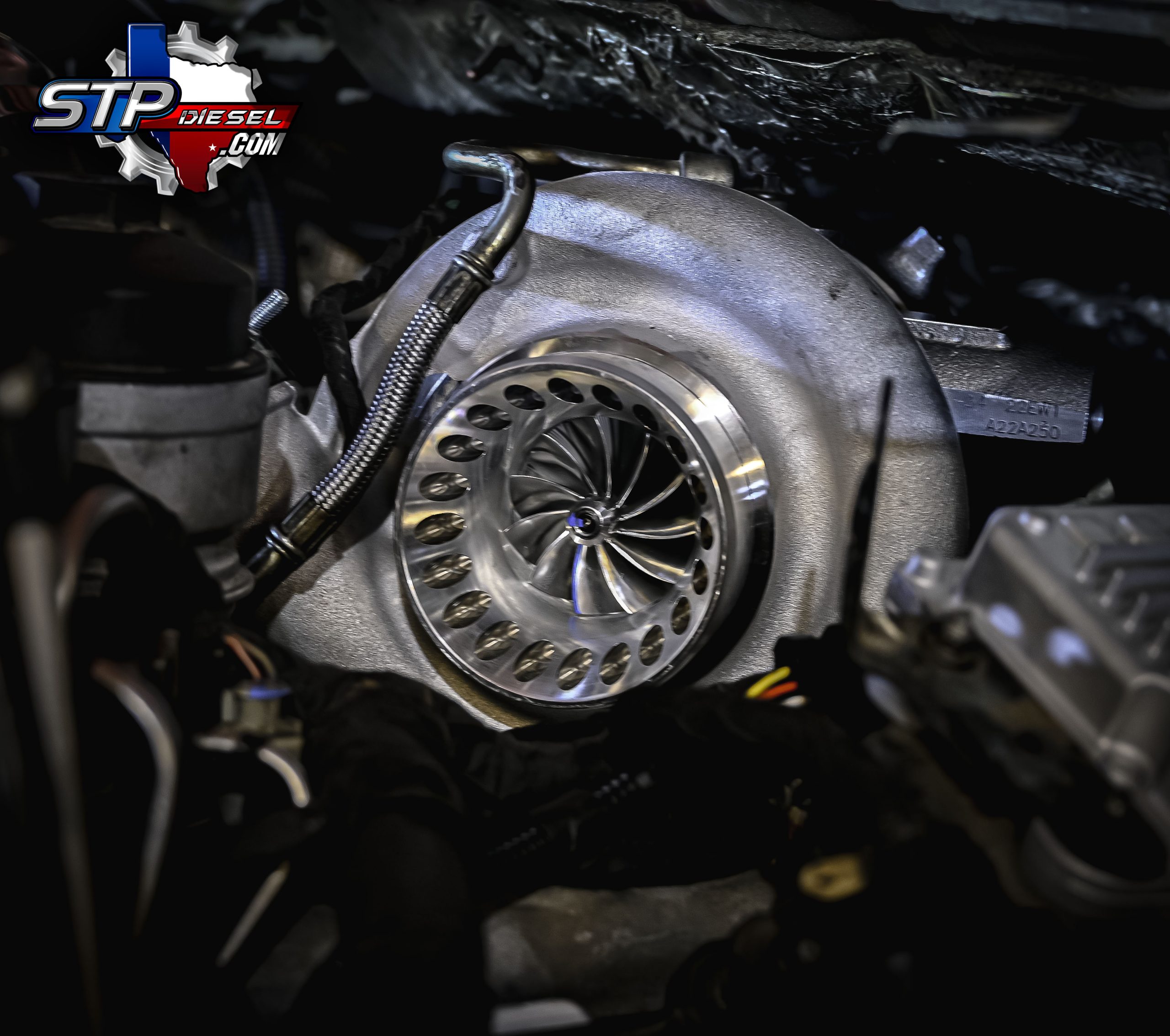

A properly built 6.0 Powerstroke with the right upgraded VGT turbo has a sound that’s difficult to mistake for anything else.
The distinctive whistle and jet-like sound of an upgraded VGT turbo has become one of the signatures of the 6.0 platform.
Combine that sound with quicker turbo response, stronger acceleration, and significantly more power than the truck had from the factory, and it’s easy to understand why the 6.0 still has such a loyal following.
For many enthusiasts, there’s simply nothing else that sounds quite like a properly built 6.0 Powerstroke.

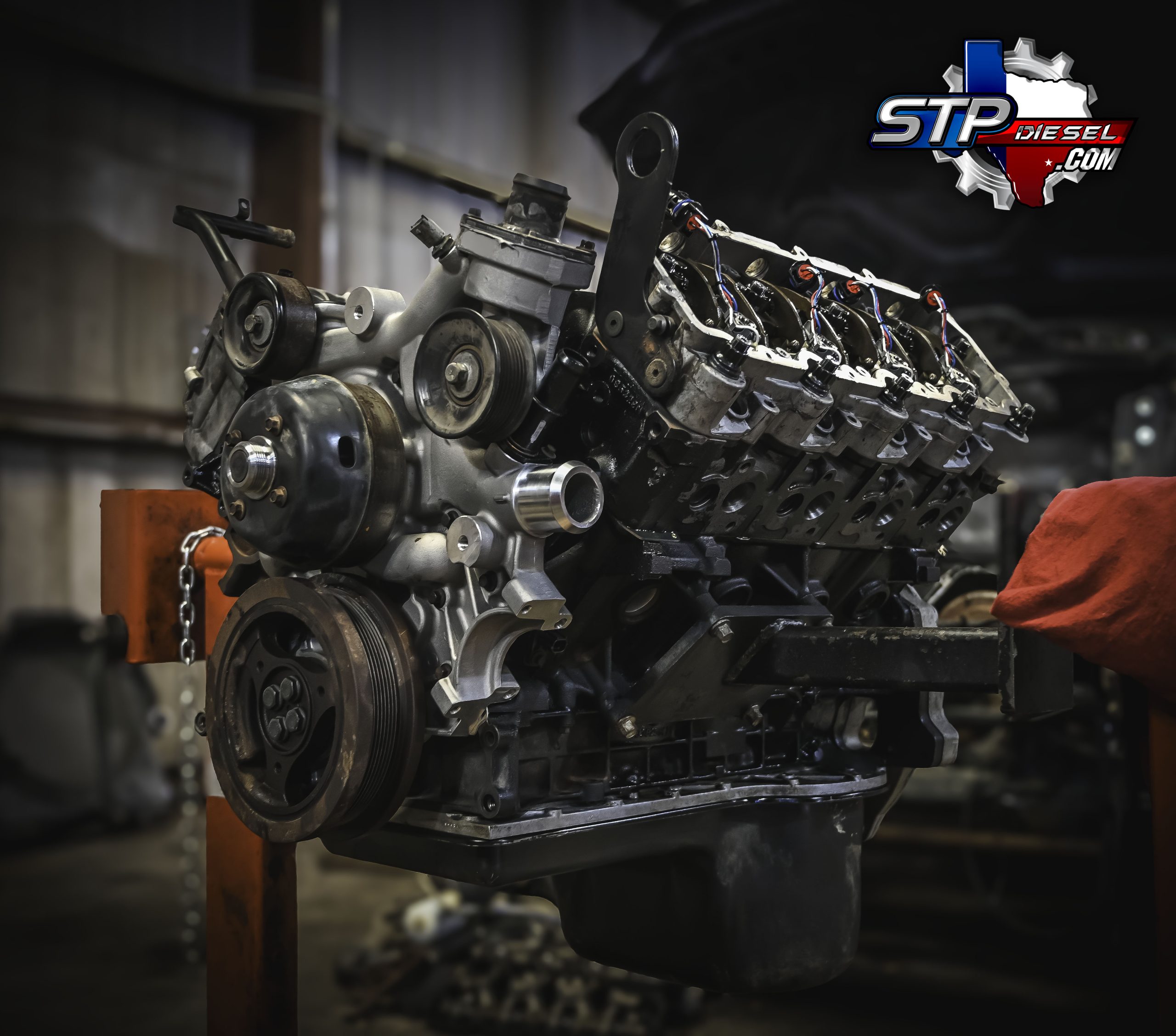

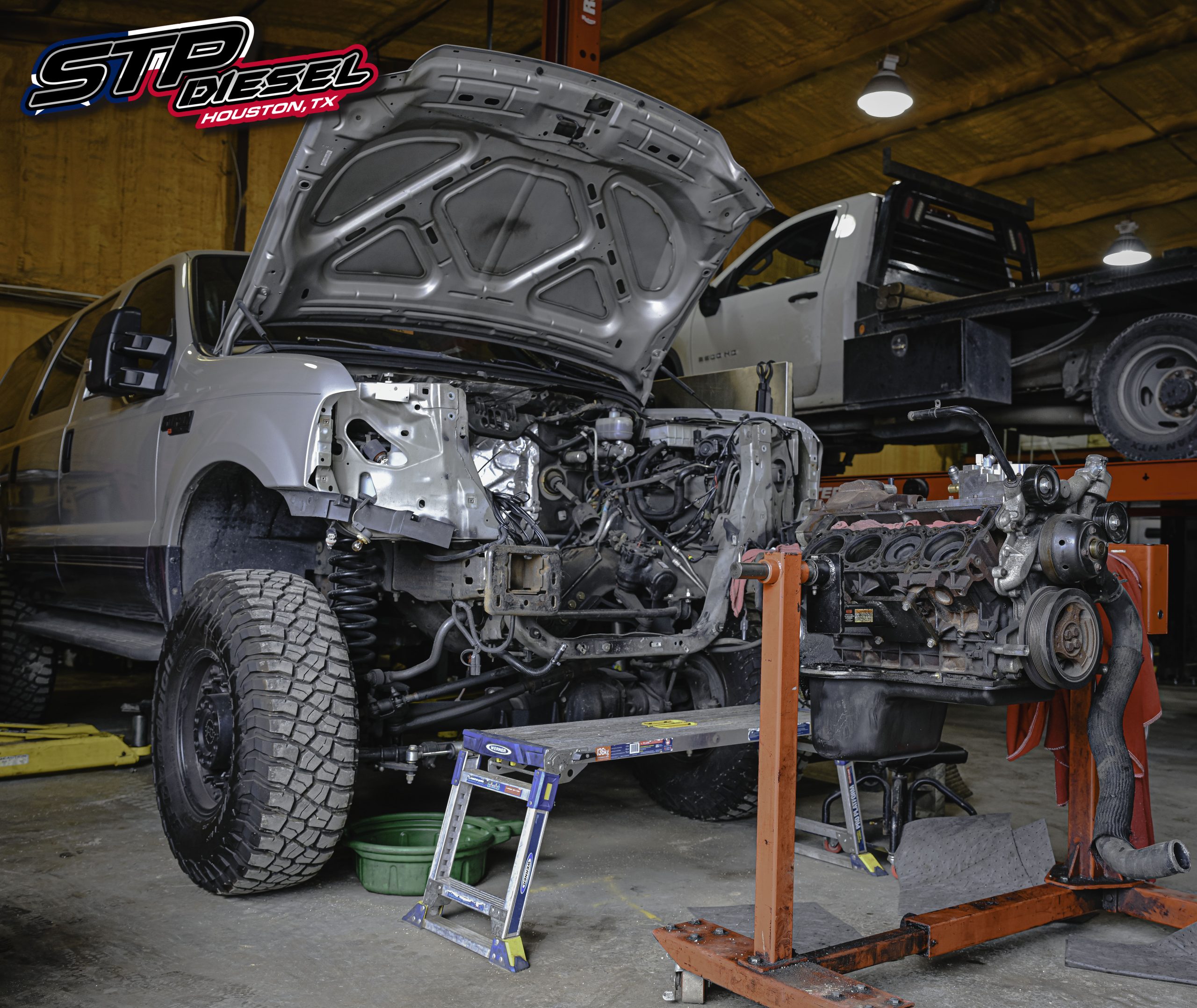

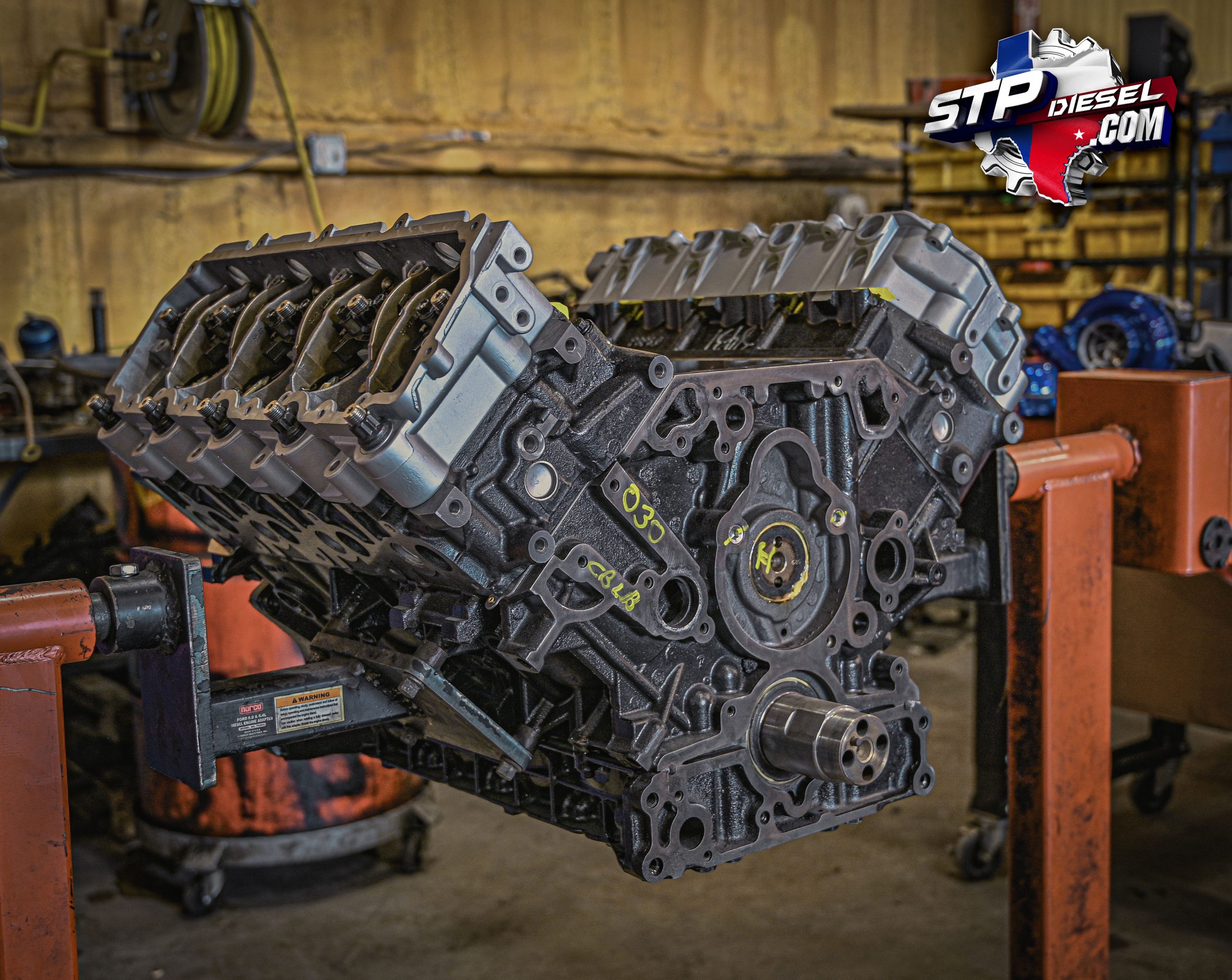

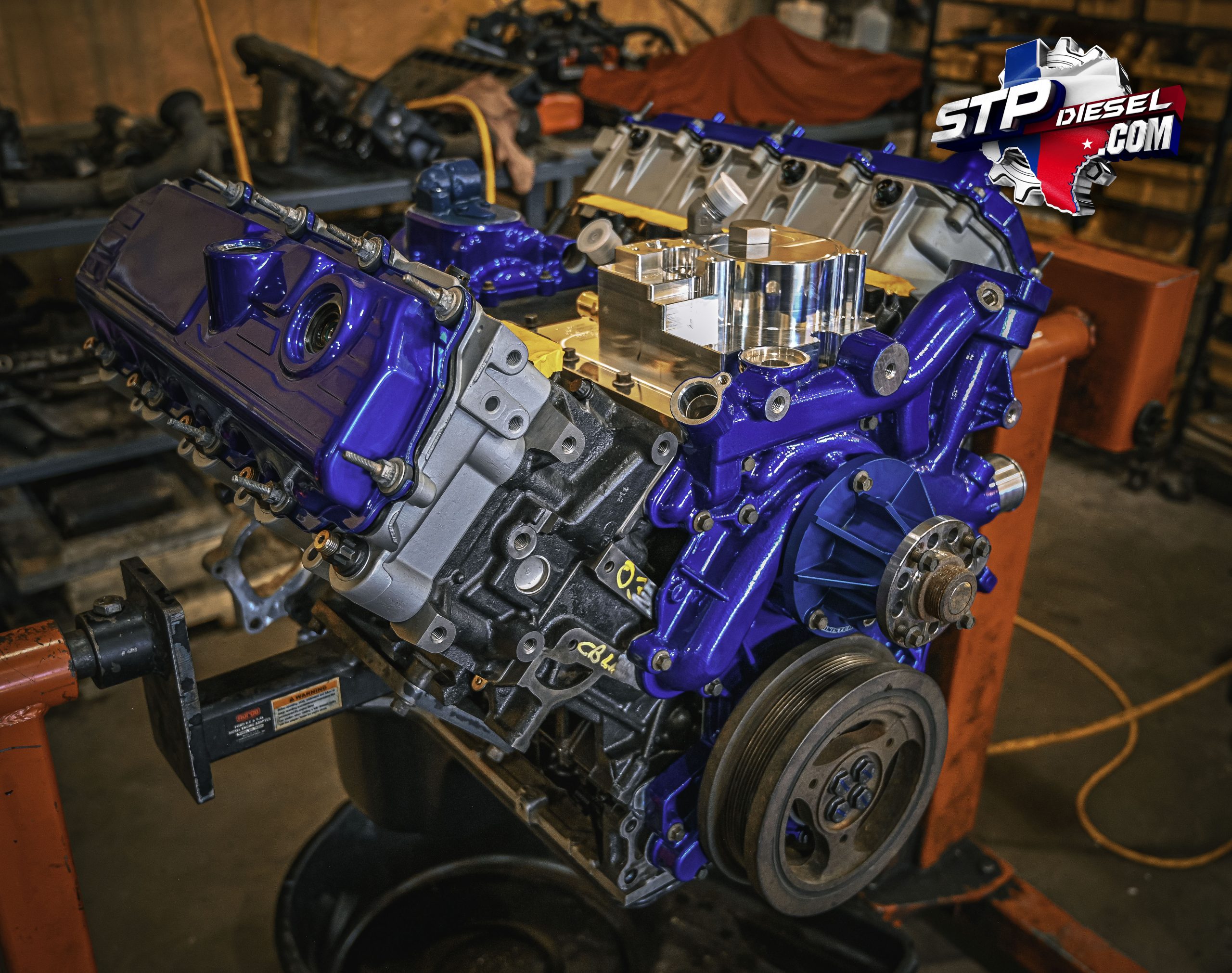

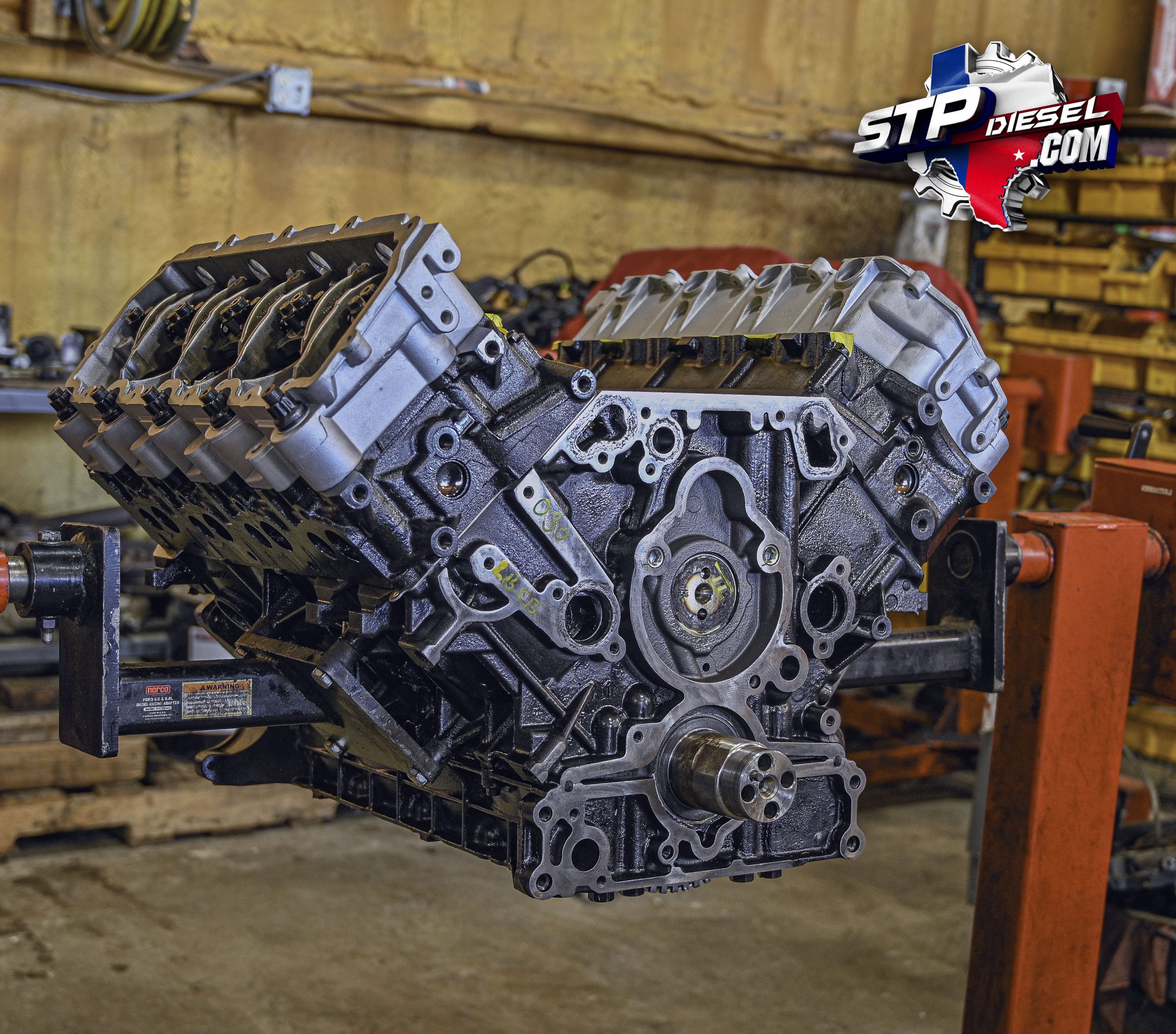

Complete 6.0 Powerstroke Builds
Whether you’re looking for reliability or horsepower, the build should start with the same thing: A healthy foundation.
Before adding power, we want to know that the engine, cooling system, high-pressure oil system, fuel system, turbo system, and supporting components are capable of handling what you’re asking the truck to do.
From there, we can build a combination around your goals.
That could mean keeping a mostly stock truck dependable, building a stronger tow rig, creating a responsive street truck, or putting together a complete performance engine with upgraded injectors, turbocharger, fuel system, high-pressure oil system, valvetrain, camshaft, and other supporting modifications.
Don’t Give Up on Your 6.0 Powerstroke
A 6.0 Powerstroke with problems doesn’t automatically mean you have a bad truck.
It needs to be diagnosed correctly. It needs to be repaired correctly. And if you’re upgrading it, the combination needs to be built correctly.
After years of aftermarket development, improved components, and accumulated knowledge about the platform, many of the weaknesses that gave the 6.0 its reputation can now be addressed with proven solutions.
At Southern Truck Pros, we’ve spent years working with these engines and understand what it takes to make them reliable, powerful, and enjoyable to drive.
Whether you need 6.0 Powerstroke diagnostics, HPOP repair, injectors, an oil cooler, EGR system repairs, head gaskets and head studs, turbocharger upgrades, engine repairs, a complete engine build, or performance upgrades, Southern Truck Pros has the experience to help you build it right.
Don’t give up on your 6.0. Let us show you what this platform can really be.
